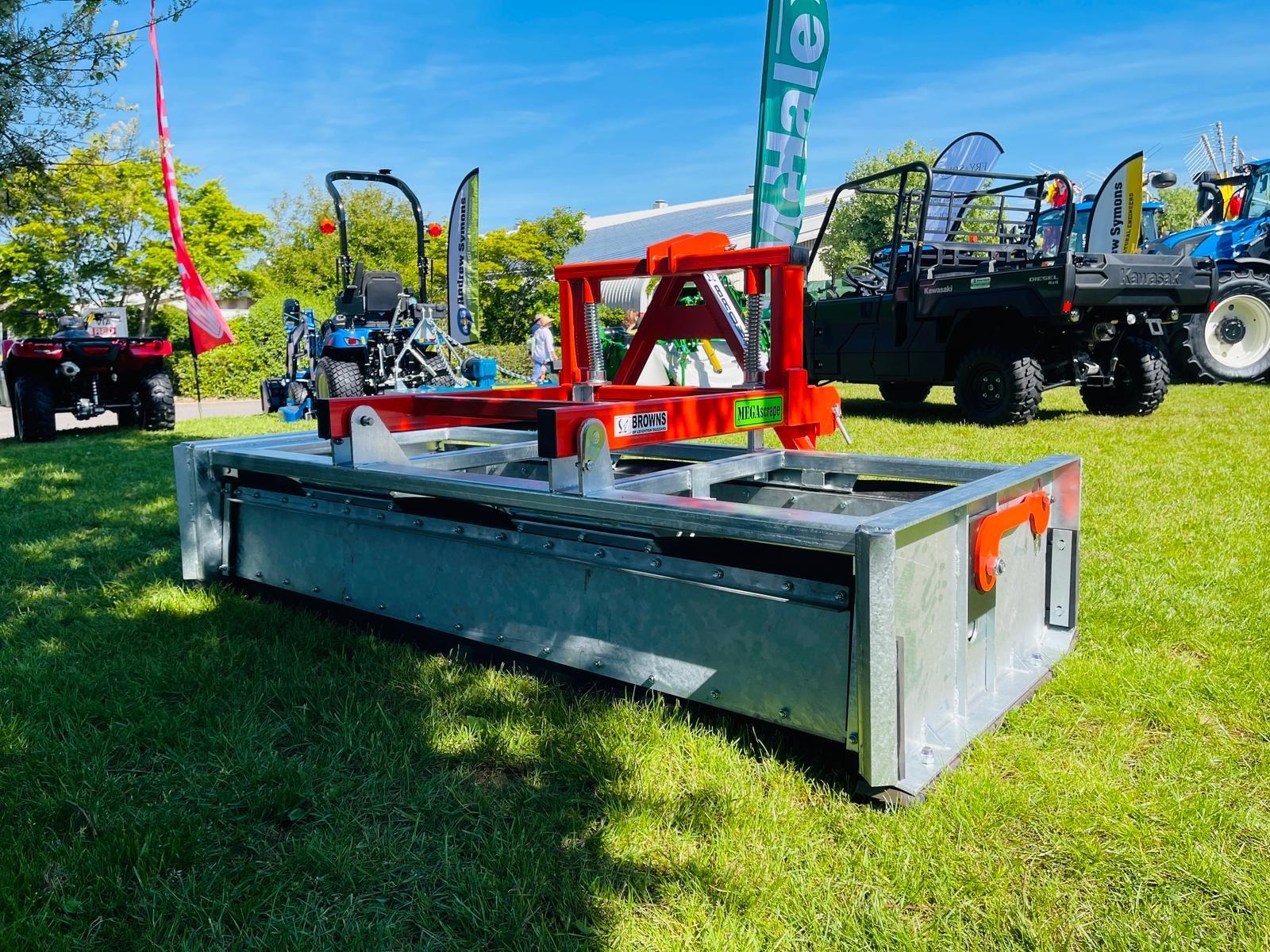

Megascrape – Rear Mounted Muck Scraper
High-Capacity Box Scraper for Efficient Yard Cleaning
The Megascrape Rear Mounted Muck Scraper is designed to reduce time and effort in muck clearance. Featuring an automatic push/pull operation with no levers or catches, it ensures a clean scraping action.
The independently moving sides follow uneven surfaces, retaining slurry within the box enclosure. An A-frame incorporated into the linkage frame, mounted on springs, applies downward pressure on the rubber scraping blades for optimal performance.
Key Features
-
High Capacity Scraper: Reduces time and effort in muck clearance.
-
Twin Blade System: Automatic push/pull operation with no levers or catches.
-
Independently Moving Sides: Follow uneven surfaces to retain slurry within the box.
-
Weight Transfer Design: Ensures positive pressure on blades for a cleaner finish.
-
Compatibility: Fits Cat 1 and 2 three-point linkage.
-
Rust and Seize-Free Hinges: Rubber hinges for durability.
-
Available in Five Working Widths: Choose the size that fits your needs.
Specifications
| Model | Code | Overall Width | Working Width | Depth | Height | Weight | Price |
|---|---|---|---|---|---|---|---|
| 5′ 6″ | 66150 | 1827 mm | 1677 mm | 1220 mm | 1111 mm | 344 kg | £2310.00 |
| 6′ 0″ | 66155 | 1979 mm | 1829 mm | 1220 mm | 1111 mm | 356 kg | £2350.00 |
| 6′ 6″ | 66160 | 2132 mm | 1982 mm | 1220 mm | 1111 mm | 361 kg | £2405.00 |
| 7′ 0″ | 66165 | 2284 mm | 2134 mm | 1220 mm | 1111 mm | 370 kg | £2490.00 |
| 8′ 0″ | 66168 | 2588 mm | 2438 mm | 1220 mm | 1111 mm | 388 kg | £2580.00 |
