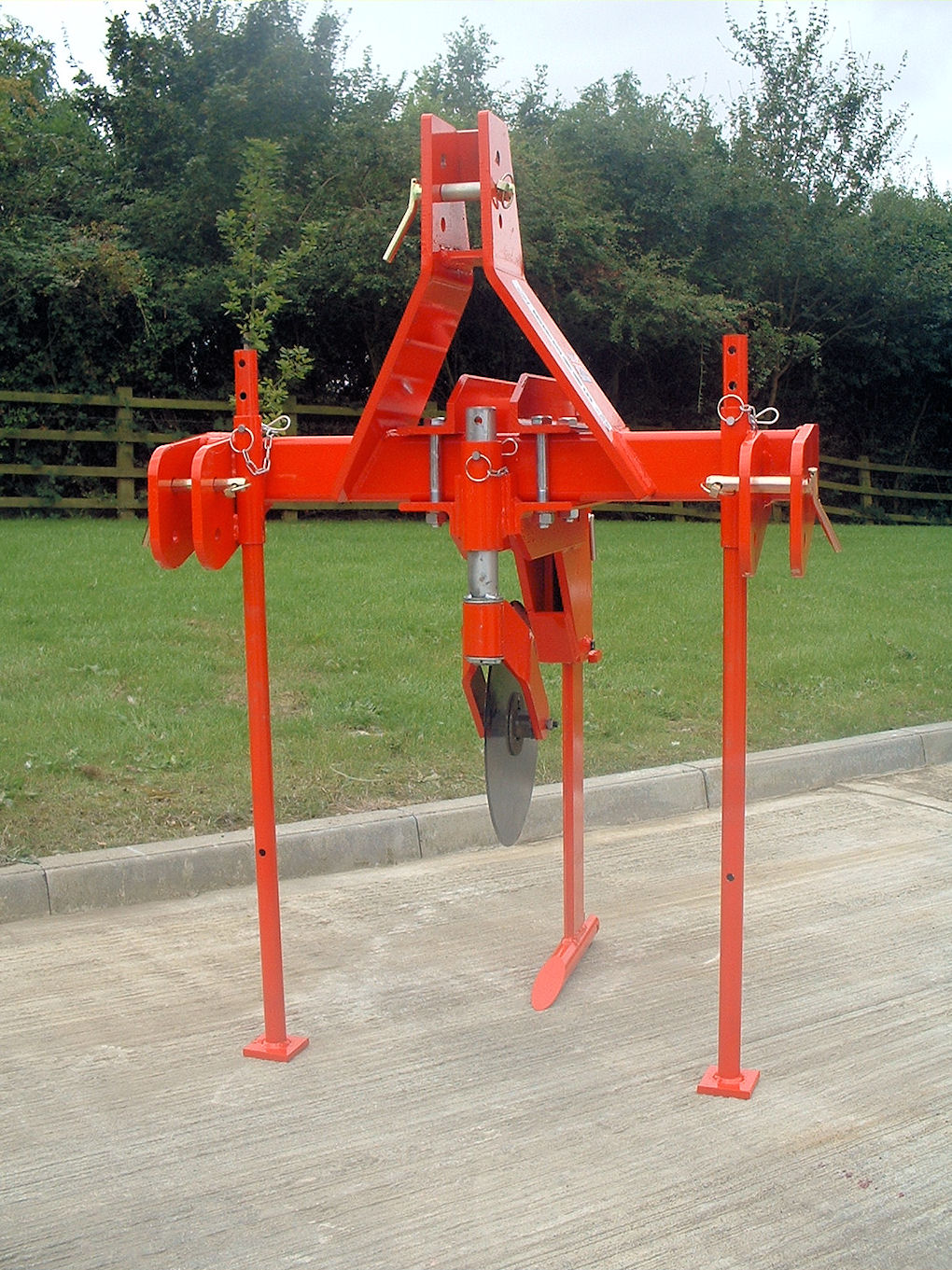

The Browns Viscount MK5 is a versatile subsoiler and moledrainer designed for efficient soil aeration and drainage.
It is suitable for tractors ranging from 40 to 90 horsepower and is compatible with Cat 2 three-point linkage systems. The MK5 model offers a maximum working depth of 560mm (22 inches), making it ideal for alleviating compaction and improving soil structure.
Features:
-
Heavy-Duty Construction: Built to withstand the demands of modern farming operations.
-
Adjustable Coulter: Features a 410mm (16″) swivel coulter for precise soil penetration.
-
Interchangeable Feet: Allows for customization based on soil conditions.
-
Reversible Leading Edge: Extends the lifespan of the blade.
-
Weight Transfer: Transfers weight to the tractor’s rear wheels for improved traction.
-
Optional Pipe Layer: Enables the installation of pipes up to 32mm diameter.
-
Optional Expander: 85mm expander available for wider trenching.
-
Optional Reel Attachment: Stores up to 300m of pipe for efficient laying.
Specifications:
| Specification | Details |
|---|---|
| Working Depth | 560 mm (22″) |
| Width (Transport) | 1800 mm (71″) |
| Width (Working) | 2300 mm (91″) |
| Height (Transport) | 2215 mm (87″) |
| Weight (Subsoiler) | 178 kg |
| Weight (Moledrainer) | 177 kg |
| Max Horsepower | 90 hp |
| Linkage Type | Cat 2 |
| Blade Material | High-grade carbon steel |
| Shear Bolt Protection | Yes |
| Wing Kit Included | Yes |
| Optional Expander | 85 mm |
| Optional Pipe Layer | Yes |
