The Browns Consort Heavy Duty is a robust subsoiler and moledrainer designed to alleviate soil compaction and improve drainage in heavy soils.
It is suitable for tractors ranging from 80 to 140 horsepower and is compatible with Cat 2 three-point linkage systems. The Consort Heavy Duty model offers a maximum working depth of 660mm (26 inches), making it ideal for enhancing soil structure and promoting healthy crop growth.
Features:
-
Heavy-Duty Construction: Built to withstand the demands of modern farming operations.
-
Adjustable Coulter: Features a 410mm (16″) swivel coulter for precise soil penetration.
-
Interchangeable Feet: Allows for customization based on soil conditions.
-
Reversible Leading Edge: Extends the lifespan of the blade.
-
Weight Transfer: Transfers weight to the tractor’s rear wheels for improved traction.
-
Optional Pipe Layer: Enables the installation of pipes up to 32mm diameter.
-
Optional Expander: 85mm expander available for wider trenching.
-

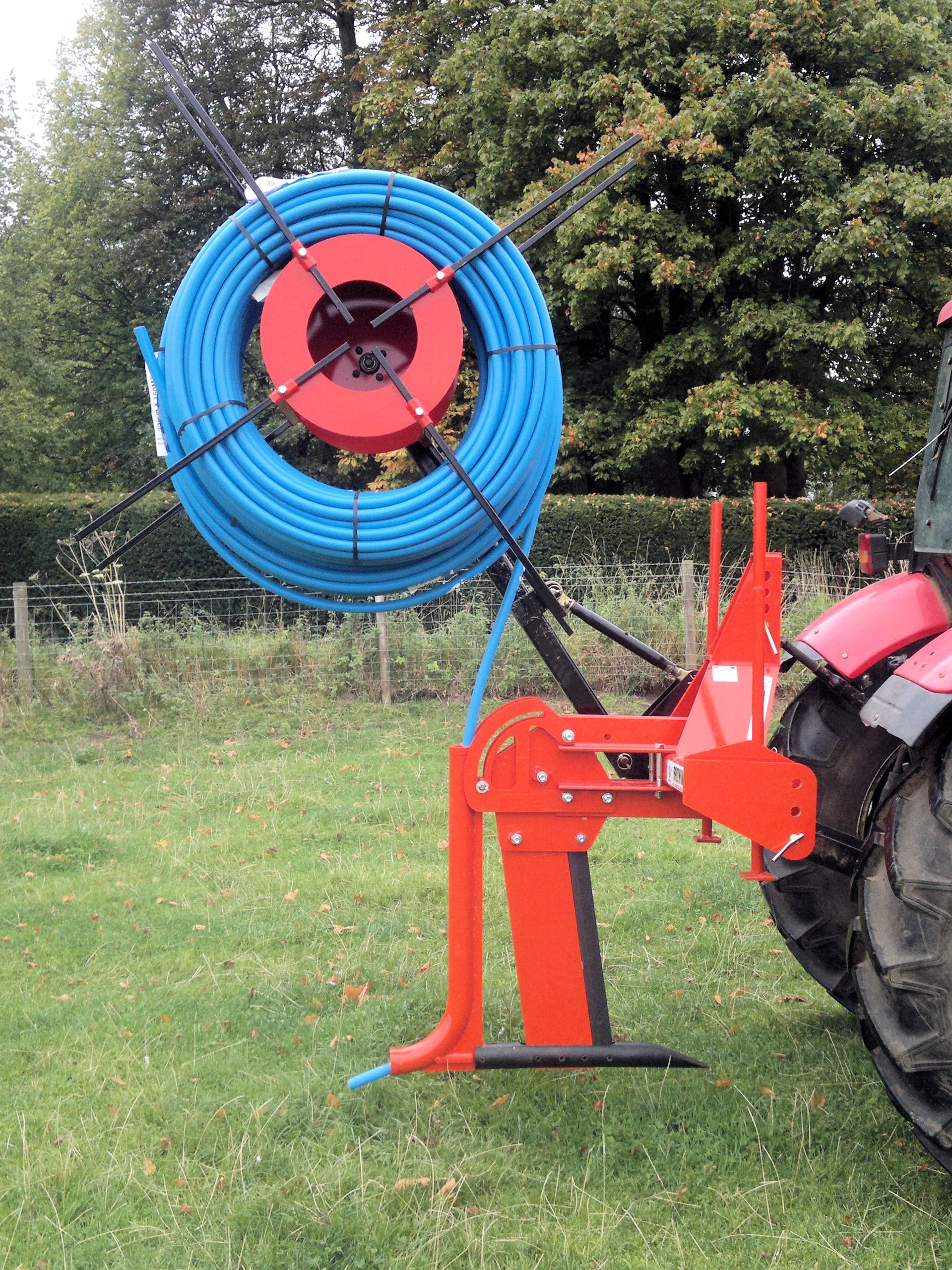

Optional Reel Attachment: Stores up to 300m of pipe for efficient laying
Specification:
| Specification | Details |
|---|---|
| Working Depth | 660 mm (26″) |
| Width (Transport) | 1800 mm (71″) |
| Height (Transport) | 2215 mm (87″) |
| Weight | 270 kg |
| Max Horsepower | 140 hp |
| Linkage Type | Cat 2 |
| Blade Material | High-grade carbon steel |
| Shear Bolt Protection | Yes |
| Wing Kit Included | Yes |
| Optional Expander | 85 mm |
| Optional Pipe Layer | Yes |
Note: Brackets and pipe layer accessories are sold separately.
