Hydraulic Transport Boxes Overview

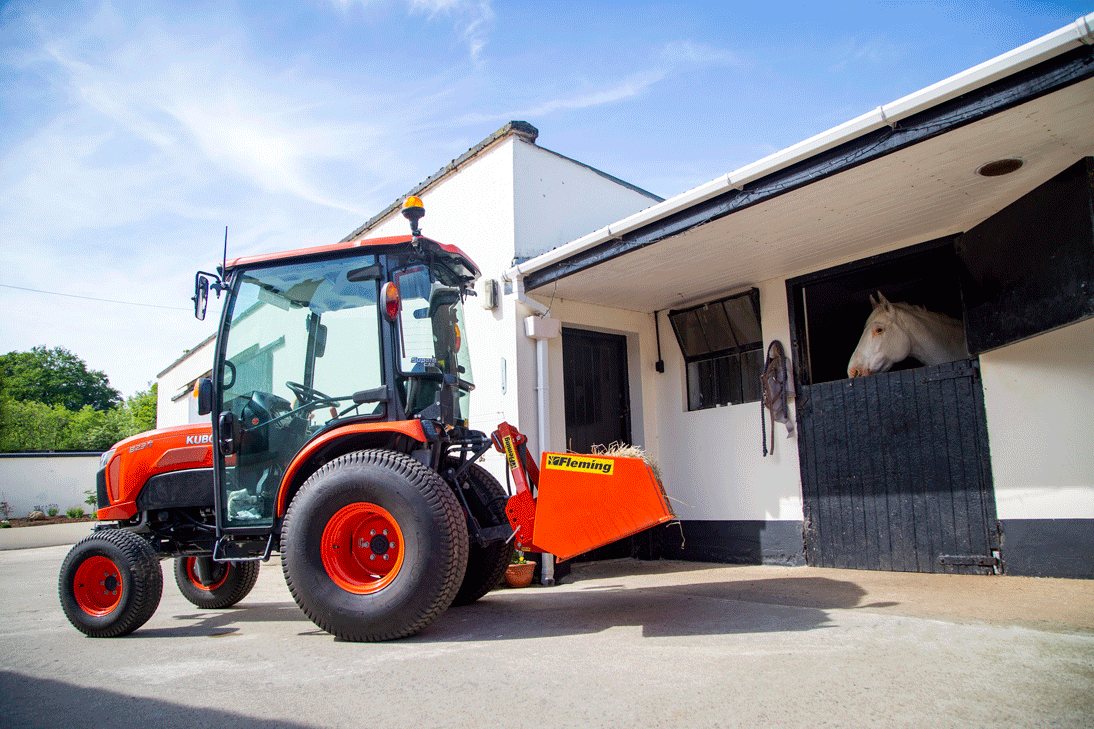

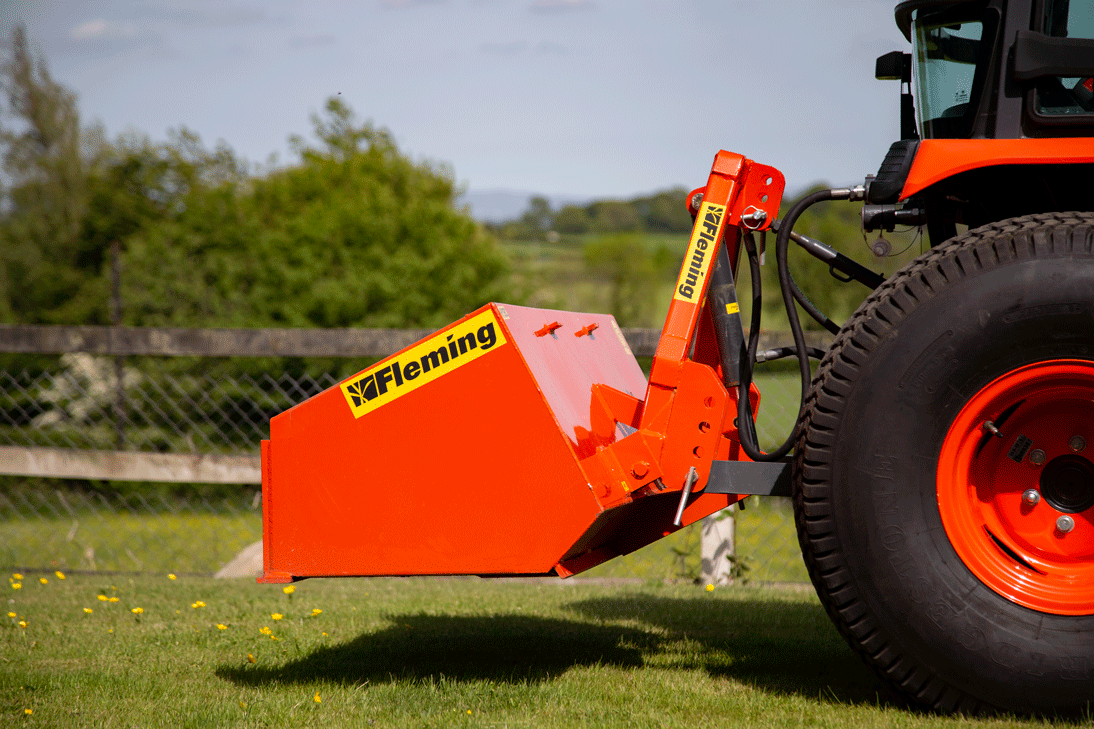

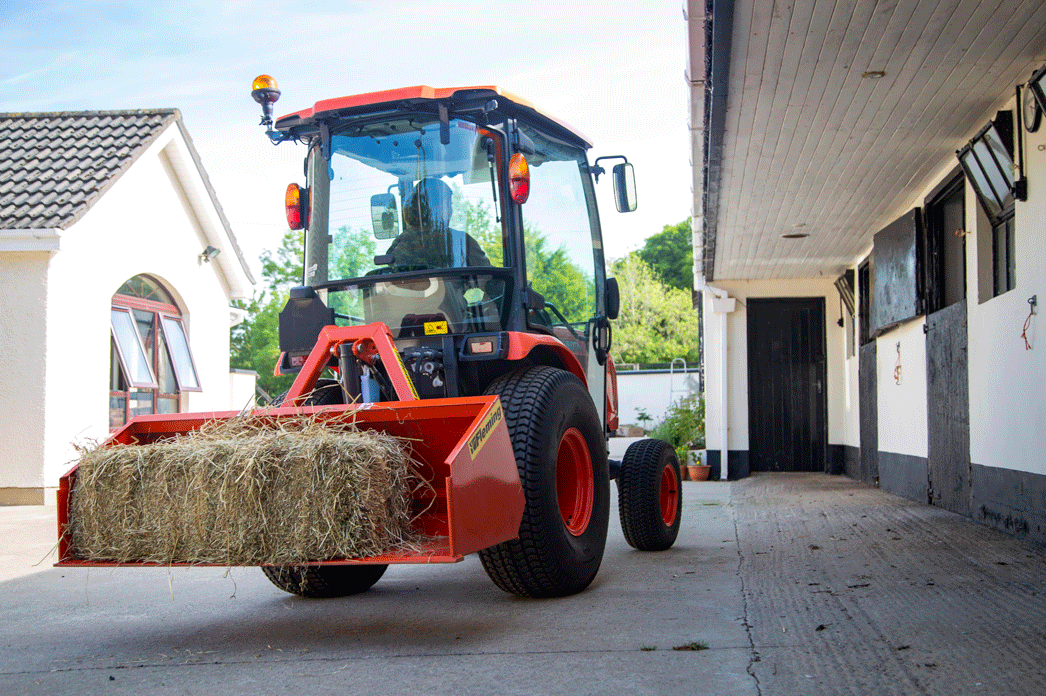

The compact hydraulic transport box has a robust and durable steel construction, and they are suitable for all compact and sub compact tractors.

The compact hydraulic transport boxes are ideal for mucking out and levelling for example. The compact hydraulic transport box has Cat. 1 linkage and is suitable for tractors up to 50hp.

There are 2 models of Compact Hydraulic Transport Box:

  • HYD4C
  • HYD5C

Features:

  • Solid construction from 3mm reinforced steel plate
  • Robust hydraulic loading & tipping hitch mechanism
  • Heavy duty double acting ram
  • Range of 3pl settings to suit most tractors
  • Double jaw lift arm pin support
  • Cat 1 lift pins supplied
  • Scraping blade fitted to the heel of the box to further add strength to the rear of the box, giving it the capability of grading and levelling
  • Internal reinforcing shoes with smooth rounded edges to create a solid back plate to absorb the force of the tractor and allow for easy unloading/cleaning

Specification:

Model Weight Width Height Depth Capacity Max HP Body Thickness Linkage
HYD4C 129kg 1260mm 510mm 640mm 0.34m³ 50 3mm Cat. 1
HYD5C 140kg 1510mm 510mm 640mm 0.43m³ 55 3mm Cat. 1
